Introduction


•Shrink disc is a device coupling not by key but by friction between shaft and hub.The device can carry out clamping force on hub from outside.It will form mechanical compression fit between shaft and hub.Shrink disc will not transmit any torque or axial load.

•Shrink disc is fited on suitable place of hub and screws are tightened following given tightening torque.Two sides tapered inner ring carries out radial force on hub.This compulsive coupling by friction can transmit strong torque and axial load safely.

•After shrink disc joined and jumped,stress of every fit surface is very heavy and get full seal airtight.This can avoid matching face becoming rusty.When shrink disc removes,loose screws and matching face will relax automaticly.Shaft、hub and shrink disc inner ring will return original dimension and clearance.Removal is the same as installation.



Applying Scene

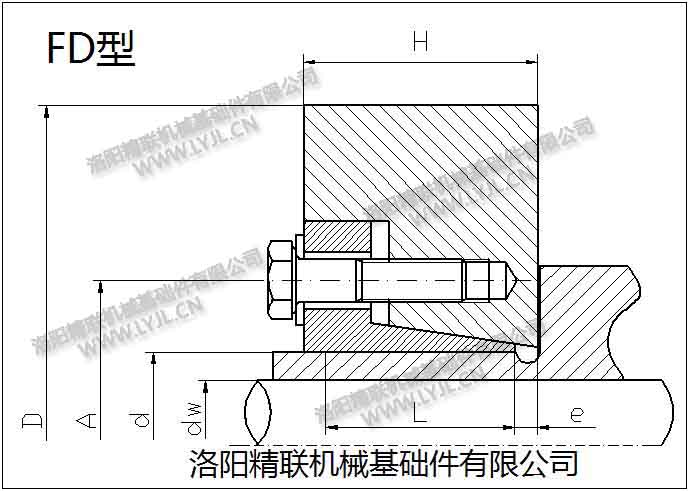

Outline Dimension

FD-22型
型號	d[mm]	dw[mm]	Mt[kNm]	Pax[kN]	重量[kg]	D[mm]	l[mm]	H[mm]	A[mm]
FD 640-22	640	520	2700	10400	1020	1020	254	286	730
FD 660-22	660	530	3300	12500	1180	1070	260	292	748
		550	3600	13140
FD 700-22	700	560	3800	13500	1340	1140	260	292	788
		580	4100	14100
FD 750-22	750	600	4800	16000	1350	1150	278	320	850
		620	5100	16600
FD 800-22	800	640	5800	18100	1650	1230	296	350	900
		660	6200	18800
