        Product
        • Overview
        • Specification
        • Download

        Introduction


        •The prominent advantage of all our products is fast installation and removal.
        • We provide suited drilling way to divide flange connection equally.

        • FKH full flange connection type.

        • FKH half flange connection type.


        Applying Scene

        Shaft diameter is from 70mm to 350mm and transmittable torque is from 6kNm to 911kNm.

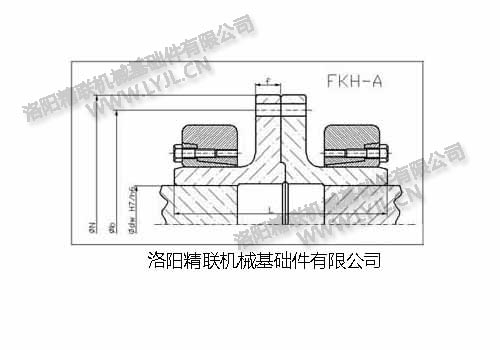

        Outline Dimension
        FKH系列
        參數(shù)
        鎖緊盤
        基本參數(shù)
        法蘭螺栓
        重量
        型號
        dw
        Mt
        型號
        擰緊力矩
        N
        b
        L
        f
        數(shù)量與規(guī)格
        擰緊力
        Weight
        Type
        mm
        Nm


        Nm
        mm
        mm
        mm
        mm


        Nm
        kg
        FKH 240-80
        70
        6,000
        HSD 100-22
        58
        240
        206
        136
        18
        6-M16
        210
        23
        75
        7,000
        84
        10,000
        FKH 300-90
        85
        12,000
        HSD 125-22
        100
        300
        260
        160
        20
        6-M20
        420
        44
        95
        16,000
        100
        19,000
        FKH 340-100
        95
        17,000
        HSD 140-22
        160
        340
        280
        190
        24
        5-M24
        720
        61
        100
        20,000
        115
        28,000
        FKH 370-110
        115
        30,000
        HSD 155-22
        160
        370
        310
        210
        24
        8-M24
        720
        78
        120
        33,000
        125
        36,000
        FKH 400-120
        120
        37,000
        HSD 165-22
        240
        400
        350
        228
        30
        8-M24
        720
        110
        125
        41,000
        135
        50,000
        FKH 400-130
        130
        45,000
        HSD 175-22
        240
        400
        350
        228
        30
        8-M24
        720
        112
        135
        49,000
        145
        58,000
        FKH 470-140
        140
        64,000
        HSD 185-22
        240
        470
        416
        278
        36
        10-M30
        1,450
        173
        145
        70,000
        150
        76,000
        FKH 470-150
        150
        80,000
        HSD 200-22
        240
        470
        416
        278
        36
        10-M30
        1,450
        182
        155
        87,000
        160
        93,000
        FKH 520-160
        160
        103,000
        HSD 220-22
        470
        520
        456
        300
        36
        12-M30
        1,450
        245
        165
        110,000
        170
        119,000
        FKH 560-180
        170
        122,000
        HSD 240-22
        470
        560
        496
        322
        36
        16-M30
        1,450
        302
        180
        140,000
        190
        159,000
        FKH 560-200
        190
        163,000
        HSD 260-22
        470
        560
        496
        322
        36
        16-M30
        1,450
        334
        200
        184,000
        210
        207,000
        FKH 590-220
        210
        215,000
        HSD 280-22
        470
        590
        526
        392
        40
        18-M30
        1,450
        420
        220
        240,000
        230
        267,000
        FKH 630-240
        220
        271,000
        HSD 300-22
        820
        630
        550
        408
        40
        18-M30
        1,450
        494
        230
        300,000
        240
        331,000
        FKH 630-250
        240
        301,000
        HSD 320-22
        820
        630
        550
        408
        40
        18-M30
        1,450
        534
        250
        332,000
        260
        364,000
        FKH 710-260
        250
        390,000
        HSD 340-22
        820
        710
        656
        450
        40
        24-M30
        1,450
        717
        260
        427,000
        270
        466,000
        FKH 710-280
        270
        496,000
        HSD 360-22
        820
        710
        656
        450
        40
        24-M30
        1,450
        754
        280
        539,000
        290
        584,000
        FKH 800-300
        290
        640,000
        HSD 390-22
        1,210
        800
        736
        500
        50
        28-M30
        1,450
        1,006
        300
        691,000
        320
        800,000
        FKH 800-330
        320
        742,000
        HSD 420-22
        1,210
        800
        736
        540
        50
        28-M30
        1,450
        1,158
        330
        797,000
        350
        911,000
