Introduction
• NF series applies to hold back shaft with high speed.
Applying Scene
It is a special device for preventing reverse.In transmitting the same torque,it has many advantages,such as light weight, compact conformation , reliable transmitting force, easy dismantle, convenient installation, long life length , undemanding installation accuracy and so on.

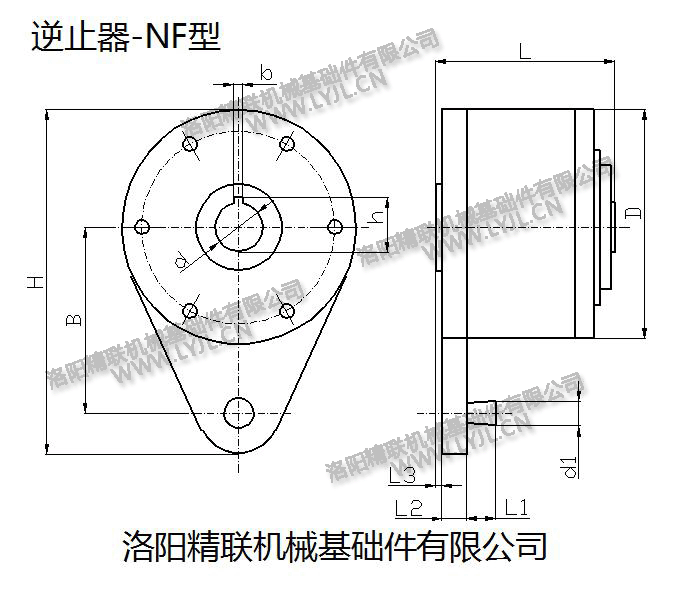

Outline Dimension
• NF series applies to hold back shaft with high speed.
Applying Scene
It is a special device for preventing reverse.In transmitting the same torque,it has many advantages,such as light weight, compact conformation , reliable transmitting force, easy dismantle, convenient installation, long life length , undemanding installation accuracy and so on.

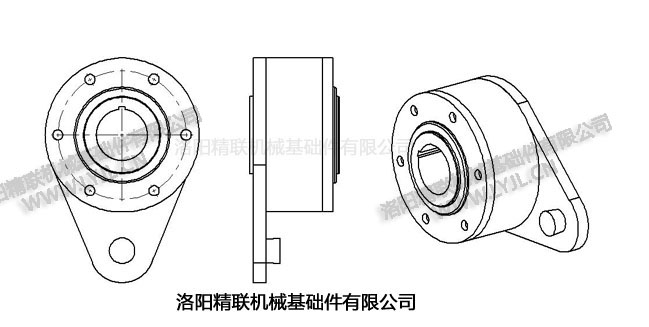

Outline Dimension
|
NF型
|
額定逆止力矩Te
|
孔徑范圍d(E7)
|
最高轉(zhuǎn)速
|
非接觸轉(zhuǎn)速
|
安裝軸伸長度
|
最大質(zhì)量
|
|
型號(hào)
|
Nm
|
mm
|
r/min
|
r/min
|
mm
|
Kg
|
|
NF10
|
1000
|
32-50
|
1500
|
450
|
120-142
|
28
|
|
NF16
|
1600
|
45-60
|
1500
|
450
|
125-148
|
31
|
|
NF25
|
2500
|
50-70
|
1500
|
425
|
130-152
|
42
|
|
NF40
|
4000
|
60-80
|
1500
|
425
|
135-162
|
56
|
|
NF63
|
6300
|
70-90
|
1500
|
400
|
155-178
|
75
|
|
NF80
|
8000
|
80-100
|
1500
|
400
|
160-182
|
86
|
|
NF100
|
10000
|
90-110
|
1500
|
400
|
170-218
|
130
|
|
NF125
|
12500
|
100-120
|
1500
|
375
|
180-248
|
170
|
|
NF160
|
16000
|
110-130
|
1000
|
375
|
200-258
|
190
|
|
NF200
|
20000
|
120-140
|
1000
|
350
|
205-258
|
250
|
|
NF250
|
25000
|
130-150
|
1000
|
350
|
230-268
|
310
|
