        Home > Products > Adapter Sleeves > Type H3
        Product

        Type H3

        Adapter Sleeves
        • Overview
        • Specification
        • Download
        Introduction

        • Adapter sleeve is used to fix self-aligning bearing with taper bore (self-aligning ball bearing,self-aligning roller bearing) on shaft with no- shaft shoulder.Its structure is simple and working is reliable.The exchange of bearing is convenient.It is widely used in spinning and weaving,light industry、papermaking metallurgy、belt transmission、transportation device and so on.
        • Adapter sleeve is formed by several parts such as adapter bushing,locking nuts,locking washer (or locking block) and so on.Adapter sleeve with nuts and locking washer can only be changed in whole unit.Parts from different source can not interchanged.(adopt equivalently ISO113/1 or DIN5415) shaft matching with adapter sleeve has larger diameter tolerance.It can choose h7,h8,h9.


        Applying Scene

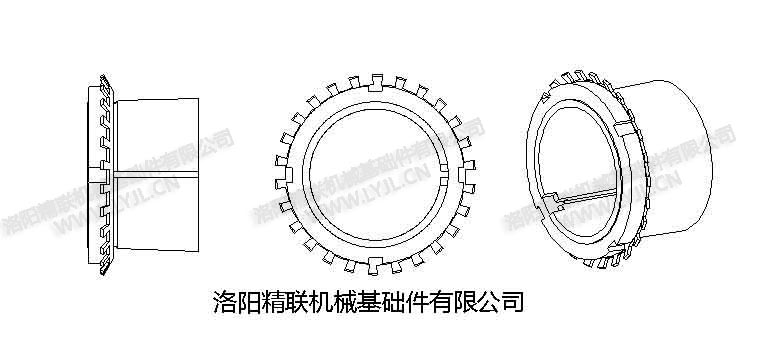

        Outline Dimension


        H 3系列
        基本尺寸(mm)
        適用軸承
        重量
        型號(hào)
        Dissensions
        Bearing in use
        Weight
        TYPE
        d
        d1
        B1
        d2
        調(diào)心球軸承
        調(diào)心滾子軸承
        kg
        H304
        20
        17
        28
        32
        1304K
        2204K
        21304CK


        0.045
        H305
        25
        20
        29
        38
        1305K
        2205K
        21305CK


        0.075
        H306
        30
        25
        31
        45
        1306K
        2206K
        21306CK


        0.109
        H307
        35
        30
        35
        52
        1307K
        2207K
        21307CK


        0.142
        H308
        40
        35
        36
        58
        1308K
        2208K
        21308CK
        22208CK
        0.189
        H309
        45
        40
        39
        65
        1309K
        2209K
        21309CK
        22209CK
        0.248
        H310
        50
        45
        42
        70
        1310K
        2210K
        31310CK
        22210CK
        0.303
        H311
        55
        50
        45
        75
        1311K
        2211K
        31311CK
        22211CK
        0.345
        H312
        60
        55
        47
        80
        1312K
        2212K
        31312CK
        22212CK
        0.394
        H313
        65
        60
        50
        85
        1313K
        2213K
        21313CK
        22213CK
        0.458
        H315
        75
        65
        55
        98
        1315K
        2215K
        21315CK
        22215CK
        0.831
        H316
        80
        70
        59
        105
        1316K
        2216K
        21316CK
        22216CK
        1.03
        H317
        85
        75
        63
        110
        1317K
        2217K
        21317CK
        22217CK
        1.18
        H318
        90
        80
        65
        120
        1318K
        2218K
        21318CK
        22218CK
        1.37
        H319
        95
        85
        68
        125
        1319K
        2219K
        21319CK
        22219CK
        1.56
        H320
        100
        90
        71
        130
        1320K
        2220K
        21320CK
        22220CK
        1.39
        H322
        110
        100
        77
        145
        1322K
        2222K
        31322CK
        22222CK
        2.18
